Home » Vertical Axis Wind Turbine » 800W 24V/48V/96V Vertical Axis Wind Turbine

800W 24V/48V/96V Vertical Axis Wind Turbine

Introducing the compact 800W vertical axis wind turbine, a reliable and efficient renewable energy solution boasting a rated wind speed of 12m/s and customizable voltage options of 24V/48V/96V. Designed for versatility, ATO vertical axis wind turbines excel in residential settings, marine applications, and the integration with solar street lighting systems, offering a seamless blend of wind energy. Explore our budget-friendly 48V household vertical wind generator, tailored for those in pursuit of economical renewable energy solutions. This cutting-edge 800W vertical axis wind turbine showcases blades crafted from robust reinforced fiberglass, maximizing power generation efficiency with its three-blade configuration, ensuring optimal utilization of wind resources.

Basic Specification:

Model: ATO-X9-800
Rated Power: 800W
Rated Voltage: 24V/48V/96V
With Controller: Yes
Start Up Wind Speed: 2 m/s
Rated Wind Speed: 12 m/s
Survival Wind Speed: 50 m/s
Wheel Diameter/Height: 0.5m/1.5m

Buy a 1000W 24V/48V/96V vertical axis wind turbine now!

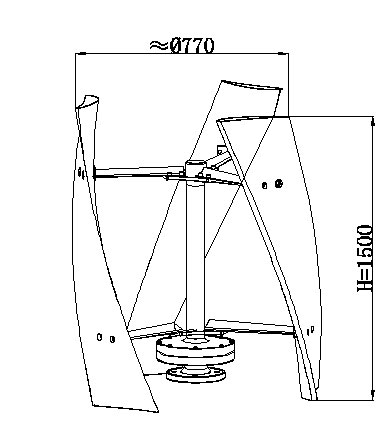

Dimension (Unit: mm)
800w vertical axis wind turbine dimension
FAQ: What is the typical life expectancy of a vertical axis wind turbine (VAWT)?
The typical life expectancy of a vertical axis wind turbine (VAWT) can vary depending on several factors such as the quality of materials used in its construction, the maintenance it receives, the environmental conditions it operates in, and the design of the turbine itself. Generally, a well-designed and properly maintained VAWT can have a lifespan of around 20 to 25 years or more. However, this estimate can vary significantly based on the factors mentioned earlier. Regular maintenance, such as lubrication of moving parts, inspection of blades for wear and tear, and monitoring of electrical components, can help extend the lifespan of a VAWT. Additionally, advancements in technology and materials may also improve the longevity of future VAWT models.
